RV Description
Cummins 6.7L inline six-cylinder electronically controlled super charged diesel engine. With a maximum power of 231kW and a maximum torque of 1050N·m. Fast 6-speed automatic transmission. Dongfeng MS-1 platform is comprehensively balanced and optimized. Through the four-stage transmission system, a powerful wheel-side torque of 20,000N·m is achieved. The powertrain is longitudinally placed, full-time four-wheel drive, with wheel-side reducers, front and rear disconnected axles, and four-wheel independent suspension system. Extremely powerful off-road capability.
Qixing's fifth type of roof-raising, freely advanced, and residential roof-raising. It outperforms the 3.5T Raptor, outshines the 4.0T G-Class, and even the 4.8-liter Unimog is just a junior in front of it. The brand-new fifth-row hard roof-raising and frontal roof-raising Mengshi 600 RV is officially released globally in a limited quantity. Take you to expand territory and brave the world. Once the Mengshi comes out, who can compete with it?
A good horse deserves a good saddle, a good RV with firm and reliable bearing capacity. Three years of painstaking research and development, and five years of mature market tests. 30,000 times of lifting and lowering reliability tests. Qixing molds are used for stamping to create an all-aluminum upper box body.
Off-road without boundaries, galloping freely. The bucket arch hard roof-raising structure, meticulously crafted by the roof-raising RV experts over three years, is solid and stable while eliminating water leakage structurally. The fifth design of the hard roof-raising and frontal roof-raising ensures a low center of gravity and super off-road capability, while also providing a superb frontal bed viewing platform for RVers.
Hard roof-raising & frontal roof-raising design, parking space spacious and comfortable, bringing a pleasant living experience. High-end electronically controlled password lock for the passenger door. The chassis design concept transferred from military to civilian, with a ground clearance of 35 centimeters and a wading snorkel of 85 centimeters. In addition to the super powerful and invincible power, it also provides a professional structural design for off-road purposes. Four-wheel independent suspension + standard differential locks are all necessary guarantees for the king of off-road.
The largest roof-raising RV manufacturer in the world, with the upper assembly design and production process of military-civilian joint factory. Cage-type Big King Kong framework + aluminum alloy stamping box, cathode electrophoresis soft explosion-proof paint coating, independent diesel air heater at the military shelter level. Both the chassis and the upper assembly are strictly produced in accordance with military industrial quality.

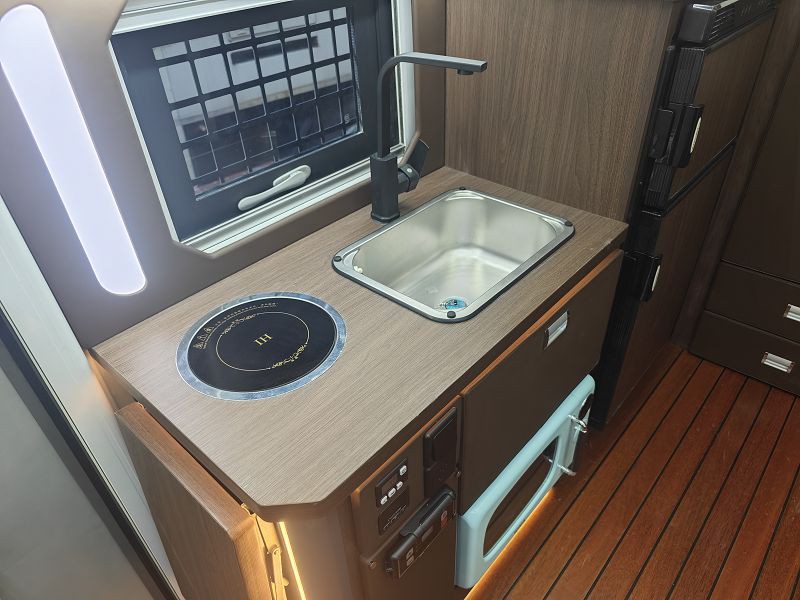

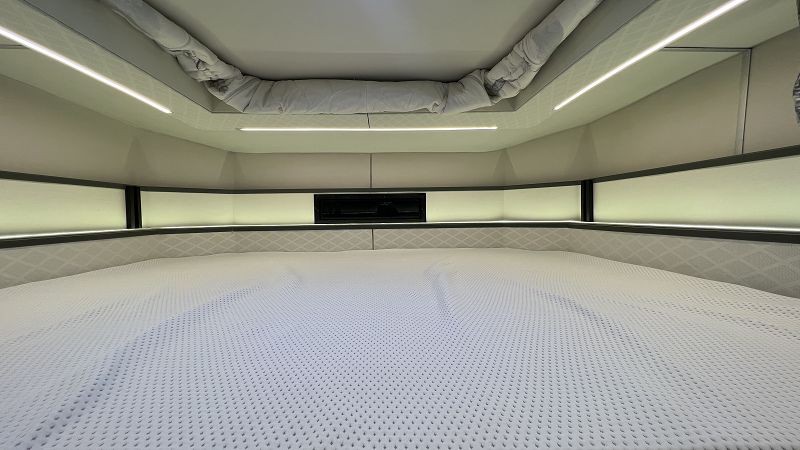

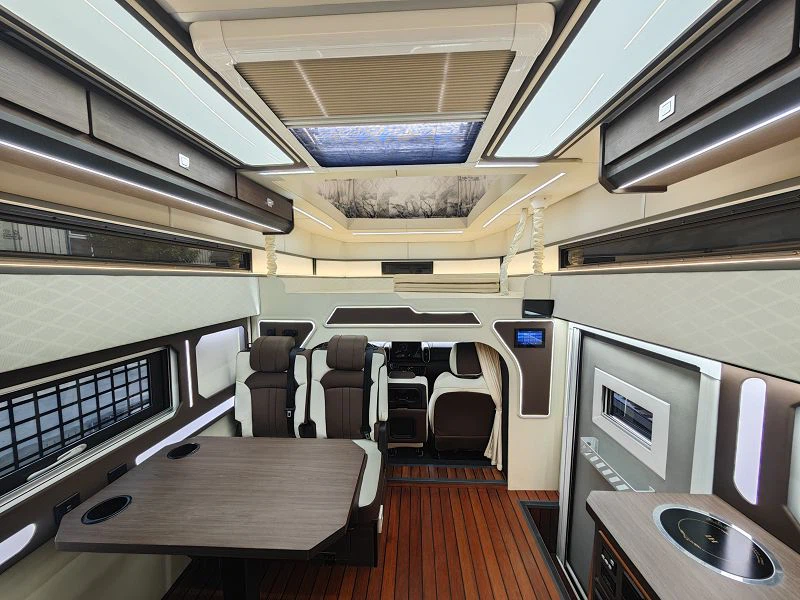

Four-person opposite seating for living and meeting guests, ultimate space. Double frontal big bed of 1900*1500mm. Independent kitchen and bathroom area with complete configuration. 210L portable water & 3000W inverter charge machine, exclusive personalized customization for water and electricity system. The large-sized open bathroom on the top, while satisfying the wild luxury for tough guys, also creates a hazy and aesthetic atmosphere when a beauty takes a bath. With the fifth type of roof-raising frontal bed, the inner height of the frontal bed allows one to stand and walk, and it is also a mobile sightseeing platform.
Maximizing the vehicle space and leading in vehicle performance. Bringing stable handling, ultimate off-road performance and excellent pass ability with the aesthetics of power and machinery.
General Parameter
|
Dimension and weight |
Dimensions |
5980*2365*2635 |
|
Inner height after pop-up |
1900 mm |
|
|
Curb weight |
5492kg |
|
|
Gross Mass |
5900kg |
|
|
Tyre size |
295/65R20LT |
|
|
Wheel base |
3700mm |
|
|
Minimum ground clearance |
340 mm |
|
|
Approach angle/ departure angle |
33/22 |
|
|
Power and control system |
Displacement |
6.7 liters |
|
Engine Code |
D6.7NS6B320 |
|
|
Power Rating kw |
231 KW/ 2300rpm |
|
|
Emission standard |
VI |
|
|
Peak torque |
1050nm |
|
|
Suspension |
Independent suspension |
|
|
Gearbox code |
F6A75 |
|
|
Differential |
2 |
|
|
Fuel |
Diesel |
|
|
Gear number |
6 |
|
|
Drive mode |
4X4 |
RV Configurations
|
Floorplan |
4-6 seats with vertical bed |
|
RV Configuration |
Aluminum alloy passenger cabin |
|
3 layers pop-up roof |
|
|
Special off-road RV door |
|
|
3 push windows |
|
|
Green color painting |
|
|
Eco-friendly fiber-leather decoration |
|
|
Yacht wood floor |
|
|
Forehead bed 1900*1500 mm |
|
|
Rear bed 1900*1000 mm |
|
|
Left & Right Storage |
|
|
RV toilet |
|
|
RV stool |
|
|
Diesel stove |
|
|
RV air-condition |
|
|
Diesel air heater |
|
|
Electricity boarding pedal |
|
|
Diesel hot water system |
|
|
Water refiller system |
|
|
RV water pumper |
|
|
RV refrigerator |
|
|
185L+25L portable water tank (with led monitor) |
|
|
40 L gray-water tanker |
|
|
Sink |
|
|
Shower |
|
|
3000W inverter 24V |
|
|
400Ah lithium battery 24 V |
|
|

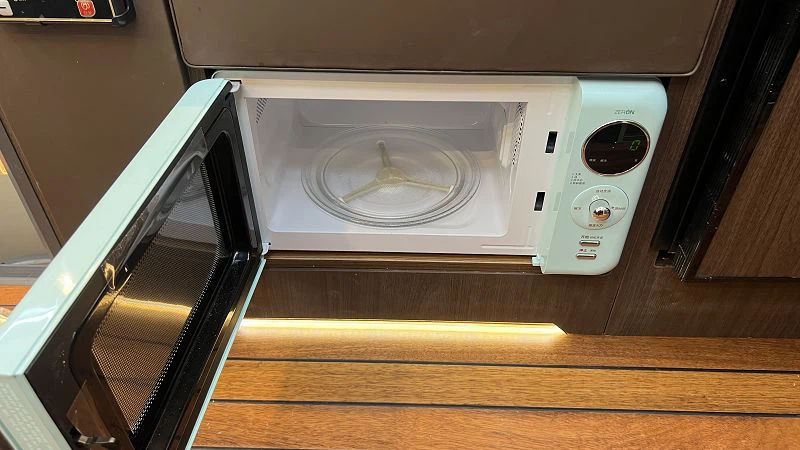

Micro wave oven |
|
|
220V/USB plug base |
|
|
220V inlet power socket and 15-meter cable |
|
|
Control center |
|
|
800 W solar panel |
|
|
3 meters louver |
|
|
Outdoor led stripe |
|
|
Option Configuration |
Configuration |
|
Pop up forehead |
|
|
200 Ah battery (24V) |
|
|
Rear storage |
|
|
ATR traction board |
|
|
Bathroom fan |
|
|
Rear skylight |
|
|
Hang Cabinet |
|
| Highlight: | 1. 2024 Newly announce off road motorhome. 2. The first motorhome with hard pop-up roof and pop up forehead. 3. 6.7T diesel engine, Euro 6 emission standard, 6 speed automatic gearbox, ABS, EBD, ESC, BA brake assist system, dual airbags . 4. The overall dimension is 5995×2300×2635mm, equip with exquisite and diversified layout |
