RV Description

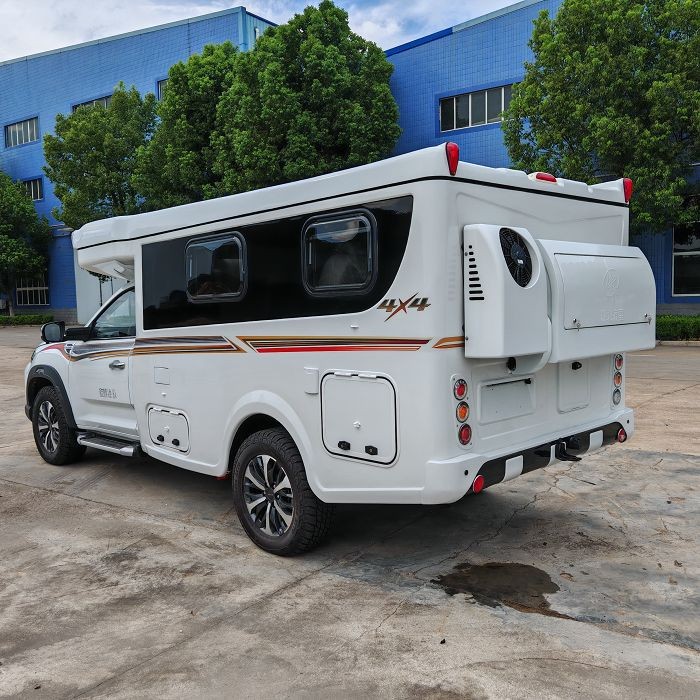

Star Boundless MAXUS Classic Pop-up Roof Off Road Motorhome is a four-wheel drive pop-up roof motorhome that famous for driving passability, indoor spacious and driving comfort. With a compact driving size of only 5995*2130*2222mm, energy-saving and environmentally friendly diesel power with double turbochargers, solid and reliable aluminum alloy stamped body and a cage-like aluminum alloy. the Star Boundless MAXUS Classic Pop-up Roof Off Road Motorhome of excellent quality is achieved.
Powered by SAIC's "π" 2.0 liters duel-turbocharged diesel engine, matched with ZF's 8-speed automatic transmission. The maximum power is 160kW, and the peak torque can reach 500N·m. The new center console design adopts an asymmetric design similar to an aviation cockpit. While enhancing the driving experience, it effectively improves the convenience of observing the central control screen. It is also equipped with a rear axle differential lock, cruise control, and smart four-wheel drive system. It is full of power and can effectively deal with various road conditions. The vehicle's cab keeps up with the times and is equipped with one-button start & electronic handbrake, making the driving experience even smoother. In terms of safety assistance systems, it includes ESP & EBA, uphill assist, downhill assist, anti-rollover, and TPMS tire pressure monitoring.
In terms of floorplan, this model has 2 different layouts base on 4 seats and 6 seats. Both 4 seats and 6 seats have overcab bed, vertical bed, indoor kitchen, outdoor kitchen, toilet and more. There have 2 differences between these 2 layouts, the first difference is seats number. The second difference is 4 seats layout have a solid bed, meanwhile, the 6 seats one has a 2.4 meters length Murphy bed.
Body and structure side, benefit to the perfect design, this model is beautiful, sturdy and eco-friendly. Star Boundless MAXUS Classic Pop-up Roof Off Road Motorhome has a cage style frame made by aluminum alloy, and body is stamping aluminum alloy body, the frame material and body material make this model sturdy and light than other motorhomes. What more, the driving height is only 2.22 meters and gravity center is quite lower than other motorhomes.

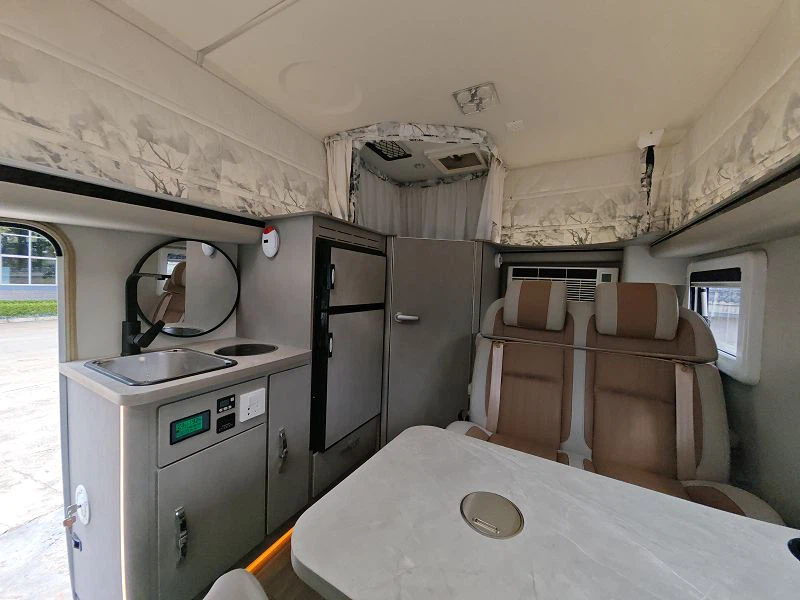

Magical living space, the living space composed by 4 face to face seats and a floatable table is magical space. It is a multifunction area can transform between dining room and bedroom. Daytime is a dining room, and in the evening is a murphy bed host a 2.4 meters length.athroom configurations, the mini and convenient bathroom adopts a waterproof, mold-proof and moisture-proof plastic suction molding process, and is equipped with a ventilation fan, a shower, soap and cosmetic shelf, a sink, a vanity mirror, rotating toilet, a bath stool and an anti-corrosion wood floor drain. It can be said that although it is small, it has all the necessary functions and is fully capable of meeting the needs of showering and using the toilet during the trip.
Electrical configuration: This vehicle is standardly equipped with a 3000W inverter charger machine, a 400Ah lithium battery, and 200W solar panels. For car owners who need more power, optional 800AH lithium batteries and 500W solar panels are available.
General Parameters
|
Models code |
QXC5035XLJF |
|
Chassis Brand |
MAXUS |
|
Body Material |
Aluminum alloy, Fiber leather, Heater preserves foam |
|
Engine brand |
Shanghai Motor |
|
Size |
5995mm*213mm*2220mm |
|
Curb Weight |
3150kg |
|
Gross Vehicle Mass |
3490kg |
|
Seat Number |
5seats |
Chassis Detail
|
Engine Code |
|
|
Engine Displacement |
2.0T |
|
Max Power |
160 kw |
|
Peak torque |
500N.m |
|
Engine type |
Turbocharger |
|
Emission standard |
VI B |
|
Transmission |
8AT |
|
Fuel Type |
Diesel |
|
Fuel Tank Capacity |
80 Liter |
|
Fuel Consumption per 100 kilometers |
8.8 Liter |
|
Suspended, Steering and Brake System |
|
|
Front Suspended System /Rear Suspended System |
McPherson independent suspension/ Air Suspension |
|
Steering Gear |
Mechanical hydraulic booster |
|
Driving mode |
FF |
|
Braking system |
Front Vented Disc |
|
Brake type |
4-wheel disc brake |
|
Security Configuration |
CDLS & Remote key |
|
Power steering |
|
|
ESC, Electronic -Stability-Controller |
|
|
Brake Assist System |
|
|
Seat-belt |
|
|
Safety Airbag |
|
|
Vehicle Backup Camera |
|
|
Multi-function steering wheel |
RV configurations
|
Sitting and lying system |
Passenger car grade double adjustable seat |
||
|
Main and passenger seats covered |
|||
|
Passenger swivel seat (optional) |
|||
|
Overcab bed 1900 mm*1400mm |
|||
|
Murphy bed 2300mm*1100mm |
|||
|
Cab privacy curtain |
|||
|
Body exterior |
Integrated cabinet |
||
|
E0 grade environment friendly standard RV furniture panels |
|||
|
Electric heated mirrors |
|
Environment friendly RV special floor leather |
|
|
Roof mounted solar power system with flexible solar panel |
Yacht wood floor (optional) |
||
|
Qixing customized manual awning |
Automatic middle door (optional) |
||
|
Car body stickers |
Light weight and environment friendly GMT vehicle interior |
||
|
Outdoor light |
Kitchen system |
RV refrigerator |
|
|
Air conditioning and ventilation system |
Cockpit original driving high-power heating and cooling air conditioner |
Countertop |
|
|
12V variable frequency back KME air conditioner |
Built-in induction cooker |
||
|
Independent fuel heater |
Covered sink for RV |
||
|
Middle door sliding glass window |
Audio and video entertainment system |
Internet entertainment multimedia navigation all-in-one machine |
|
|
Lifting mechanism |
Sturdy roof made by glass fiber reinforced plastics and aluminum alloy |
Waterway system |
Food grade waterway |
|
Spiral lift rod electric lifting platform |
15M food grade external water filling pipe |
||
|
Control Panel |
Gravity water inlet |
||
|
Electrical system |
Vehicle circuit protection system |
110L portable water tank |
|
|
Living area 600AH lithium battery pack |
40L gray water tank |
||
|
Indoor/outdoor AC220V output socket |
External shower system |
||
|
Indoor 12V car USB power interface |
Manual drain valve |
||
|
Indoor 12V car USB power interface Multi-system hierarchical control of lighting fixtures in the car |
Bathroom system |
Pull-out box toilet |
|
|
or portable toilet |
|||
|
Multi-system hierarchical control of lighting fixtures in the car RV external power port (AC220V) |
Semi-open bathroom or open bathroom |
||
|
Fold-able basin |
|||
|
15M external power cord |
|||
|
Charging and inverting all-in-one machine 3000W |
Foldable towel rack |
||
|
Dark colour (metallic paint) |
Interior color |
Gray/White |
|
