The four-wheel drive system is the core "magic" of this chassis, which can intelligently distribute power to each wheel and easily cope with complex road conditions. In off-road scenarios, such as muddy country lanes where clay sticks to ordinary tires and potholes hide the "vehicle-trapping crisis", the Iveco four-wheel drive chassis, with its strong torque output and high ground clearance, moves steadily forward. The tires grip the ground tightly, without slipping or breaking down. On steep slopes in mountainous areas after snowfall, where snow and ice accumulate, it transforms into a "snow elf". The four-wheel drive works in coordination and climbs steadily, breaking the barriers to travel in the cold winter. The precise steering and power steering system make driving more effortless while pointing and going wherever you want.

The four-person opposite seating area in this RV is a warm and inviting social space on the go. In this small "world" of the RV, the four-person opposite seating area can be regarded as a "magical corner" that embodies joy and warmth.It is a versatile "expert". At mealtime, once the tables and chairs are set up, it instantly transforms into a cozy dining area. Its social significance is equally remarkable as it brings family members and friends closer together. When night falls, with a simple adjustment, the tabletop is lowered and the cushions are flattened, and it combines into a comfortable bed for people to sleep soundly, accompanied by sweet dreams in the murphy "bedroom".

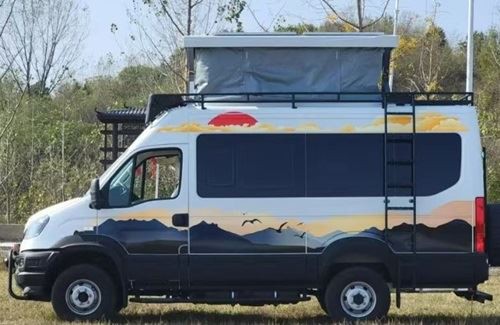

The pop-up roof part is the soul of this Vanlife campervan. It is just like a "space magic show" carefully prepared for the free journey, endowing the vehicle with the charming flexibility and variety for living on the road. The moment the roof pops up, the cramped interior space seems to "rise from the ground", with the vertical height increasing significantly. The upper part of the compartment magically transforms into a comfortable sleeping loft. Adults can stand upright, and children can play around freely. With beds laid out inside, accompanied by the twinkling stars above and the moonlight shining through the gauze curtain, it feels like sleeping in a dreamy tree house, enjoying a cozy slumber.

The ladder and luggage rack are known as the practical "partners" of the RV. On the RV, which is like a "steel caravan" full of poetry and freedom, although the ladder and luggage rack may seem unassuming, they are actually indispensable key configurations. Their designs conform to the curves of the vehicle body and are cleverly installed on the left side of the vehicle body, making it convenient for drivers and passengers to easily climb onto the roof. They can stand on the roof terrace to overlook the mountains, rivers, lakes and seas along the way, enjoying the pleasant feeling and unlocking a unique "viewing platform" on the small roof. Corresponding to the ladder, the luggage rack is the "air cargo warehouse" of the RV. carry large pieces of luggage, fully loaded with the imagination of life in the distance.

On a four-wheel-drive off-road RV with limited space, the spacious rear bathroom measuring two meters by one meter is truly precious and rare. It is quite roomy for one person to take a shower, and just about the right size for two people. The one-meter width allows for the proper arrangement of various facilities. Along one side of the wall, from bottom to top, there are a bench-style toilet, a towel rack, and a showerhead. Along the other side of the wall, there is a washbasin, hot and cold water faucets, an electrically heated vanity mirror, a wall-mounted washing machine, and overhead storage cabinets. In the middle, there are an exhaust fan and a preservative-treated wooden floor drain.

Models code	QXC5047XLJ
Chassis Brand	IVECO
Body Material	Fiber leather, Heater preserves foam
Size	5985mm2050mm3020mm
Curb Weight	3599kg
Gross Vehicle Mass	4490kg
Seat Number	4-6 seats

Engine Code
Engine Displacement	3.0T
Max Power	132 kw/ 5500 rpm
Peak torque	430N.m / 3000rpm
Engine type	Turbocharger
Emission standard	VI B
Transmission	8AT
Max Speed	140 km/ hour
Fuel Type	Diesel
Fuel Tank Capacity	130 Liter
Fuel Consumption per 100 kilometers	11 Liter
Suspended, Steering and Brake System
Front Suspended System /Rear Suspended System	McPherson independent suspension/ Air Suspension
Steering Gear	Mechanical hydraulic booster
Driving mode	4WD
Braking system	Front Vented Disc
Brake type	4-wheel disc brake

Security Configuration	CDLS & Remote key
	Power steering
	ESC, Electronic -Stability-Controller
	Brake Assist System
	Seat-belt
	Safety Airbag
	Vehicle Backup Camera
	Multi-function steering wheel

Sitting and lying system	Passenger car grade double adjustable seat
	Main and passenger seats covered
	Passenger swivel seat (optional)
	Double-top bed (2300*1300)
	Floatable table
Furniture interior	Middle door anti-mosquito screen door
	Cab privacy curtain
Body exterior	Integrated cabinet
	E0 grade environment friendly standard RV furniture panels
	Electric heated mirrors		Environment friendly RV special floor leather
	Roof mounted solar power system with flexible solar panel		Yacht wood floor (optional)
	Qixing customized manual awning		Automatic middle door (optional)
	Car body stickers		Light weight and environment friendly GMT vehicle interior
	Outdoor light	Kitchen system	RV refrigerator
Air conditioning and ventilation system	Cockpit original driving high-power heating and cooling air conditioner		Countertop
	48V variable frequency back KME air conditioner		Built-in induction cooker
	Independent fuel heater		Covered sink for RV
	Middle door sliding glass window	Audio and video entertainment system	Internet entertainment multimedia navigation all-in-one machine
Lifting mechanism	Sturdy roof made by glass fiber reinforced plastics and aluminum alloy	Waterway system	Food grade waterway
	Electricity lift-up system		15M food grade external water filling pipe
	Control Panel		Gravity water inlet
Electrical system	Vehicle circuit protection system		230L portable water tank
	Living area 600AH lithium battery pack		60L gray water tank
	Indoor/outdoor AC220V output socket		External shower system
	Indoor 48V car USB power interface		Manual drain valve
	Indoor 48V car USB power interface Multi-system hierarchical control of lighting fixtures in the car	Bathroom system	Pull-out box toilet
			or portable toilet
	Multi-system hierarchical control of lighting fixtures in the car RV external power port (AC220V)		Semi-open bathroom or open bathroom

	15M external power cord		Fold-able basin
	Charging and inverting all-in-one machine 6000W		Foldable towel rack
	Dark colour (metallic paint)	Appearance color	white
