RV Description
Star Milkway Ford Chassis Double Floor Motorhome is the first double-floor villa-style motorhome from Qixing RV which is an expert in pop-top RV. Inspired by double-decker buses, it successfully takes advantage of the exterior design of luxury yachts. With the support of Qixing RV mature and stable pop-top technology for motorhome, it realizes the perfect combination of buses, yachts and motorhome. This motorhome provides the vast number of RV enthusiasts with an unprecedented all-weather luxurious land-based living platform that integrates transportation, villas and sightseeing.
In terms of chassis, a 5.25-ton special chassis for from Ford T8 is carefully selected. It is equipped with the classic 2.3T diesel engine with a maximum power of 126kW and a peak torque of 430N·m. Compared with the standard 4.5-ton chassis, it has stronger carrying capacity, greater modification space, more spacious interior, higher stability and more guaranteed safety

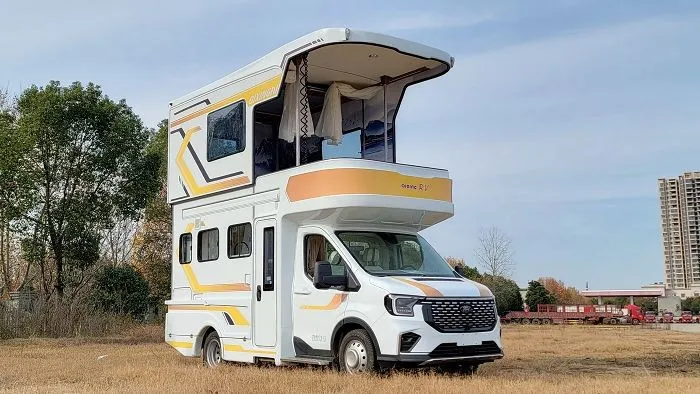

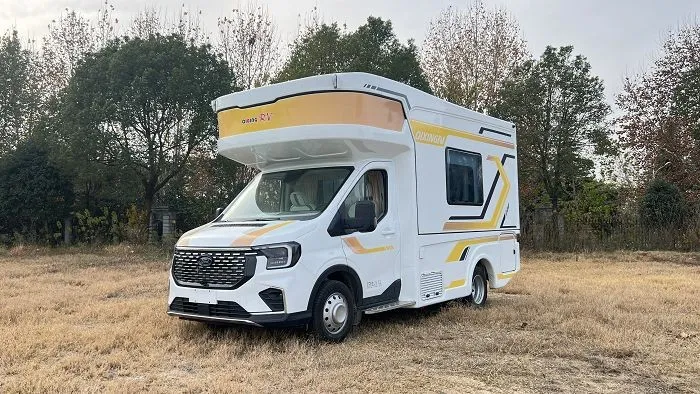

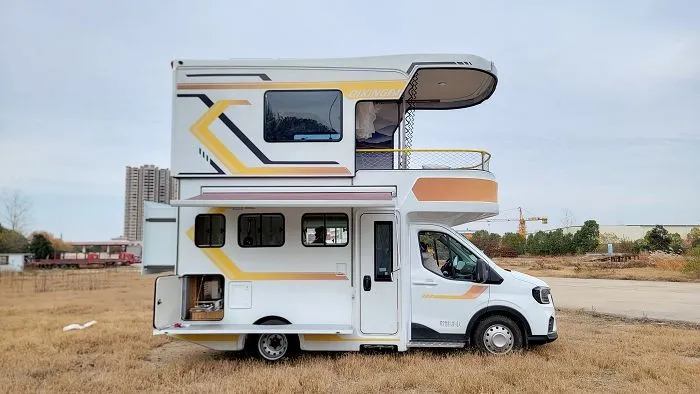

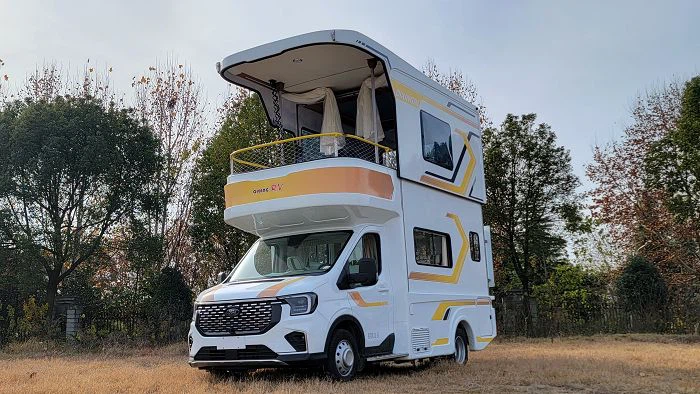

The appearance follows the design concept of "yacht-style double-layer roof lifting", with the brand-new front face styling of the Ford family. The lines and decals of the entire vehicle is interwoven and embellished, looking dynamic and fashionable. The overall dimension is 5990*2435*3095mm. This RV has a legal capacity of 6 people and can be driven by C license.

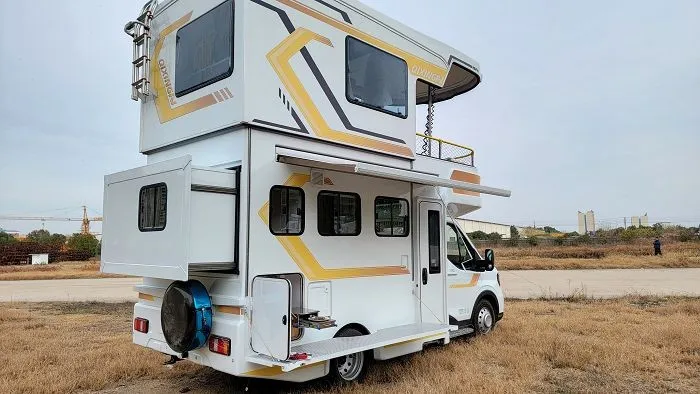

The driving size of one motorhome, and the parking space of two motorhome. With a driving height of less than 3100 mm and a unique streamlined appearance, it effectively reduces driving wind resistance and improves driving stability. After parking and raising the roof and simultaneously opening the rear electric expansion, it realizes the simultaneous expansion of longitudinal and lateral space, becoming a spacious two-story pop-top villa with ample space during travel.

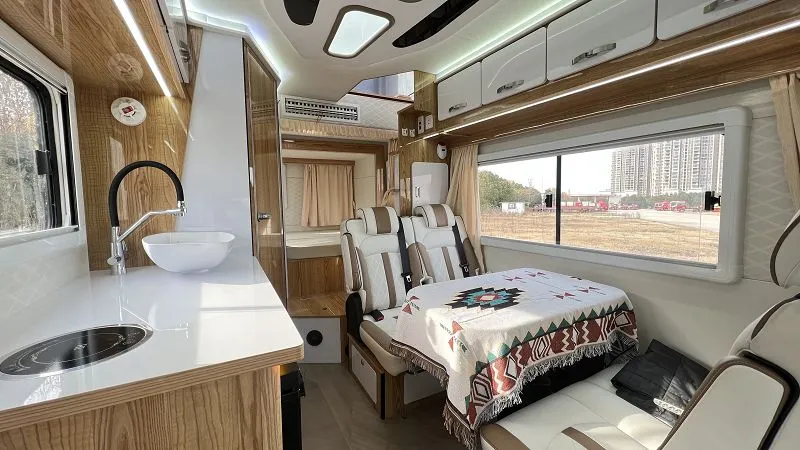

The spacious space on the first floor is equivalent to an independent C-type RV. In terms of indoor facilities, it has 2 ICECO vehicle -mounted refrigerator, professional audio, an LED TV, a suspended starry sky ceiling, a central air conditioning system, a special diesel heater, an independent liquid heater, a richly equipped RV bathroom, a simple indoor kitchen bar counter, and the motorhome touch control center.
In terms of external facilities, there is a 3.5-meter outdoor awning, a special water injection combination for RVs, a unique large-size buffet bar countertop, a plateau version of a fierce windproof diesel stove, a rear ladder, a through-type luggage compartment, and a compartment door for the black water tank of toilet.
Second floor is the most attractive and coolest part of this motorhome. It is the best place for sightseeing and relax. This floor is a semi-open part included a terrace with fish-spa pool, air-soft chair, automatic banisters, and a multifunction closeable room.

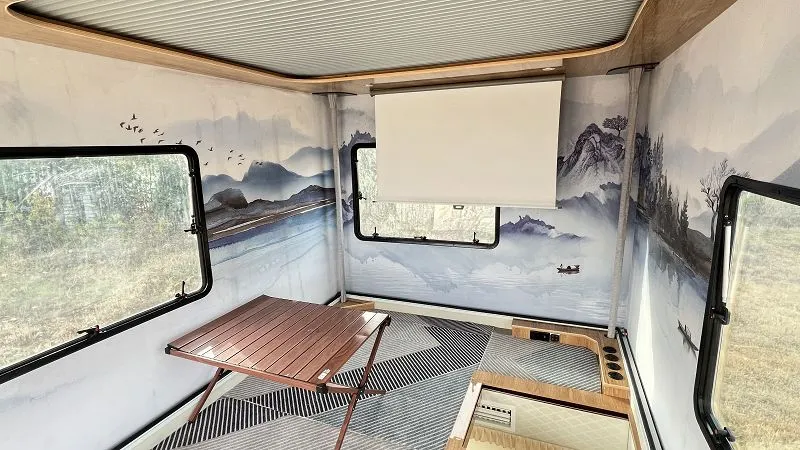

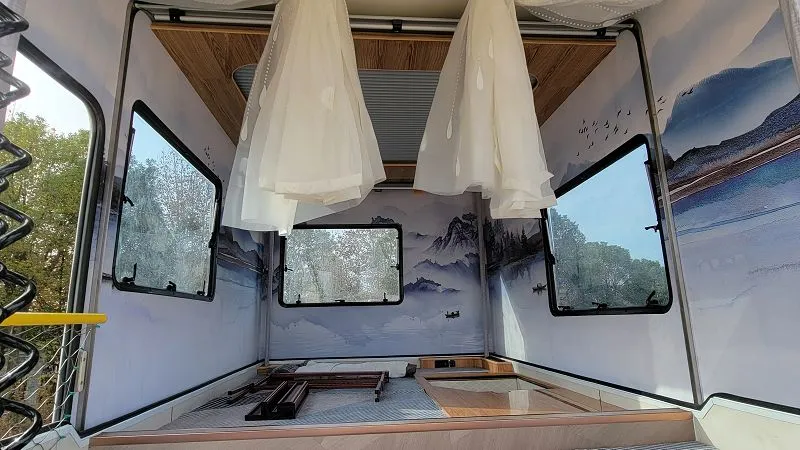

During the parking state, the second floor of this RV can be used for leisure and sleep. Passengers can arrive the second floor via the seven-step wooden ladder. After the roof is lifted, the second-floor space has diverse functions and can be used in all-weather scenarios. It is divided into a front terrace and enclosed area. Through the rolling door partition, it can be used as a bedroom with the air conditioning and heater, or as a reception room. The interior wall of the second floor is in the style of landscape paintings and customs tailer made is also available. Pump the 2000*1300mm air cushion, the second floor will have an exotic tatami. Turn on the large screen projector, you will get a private cinema.

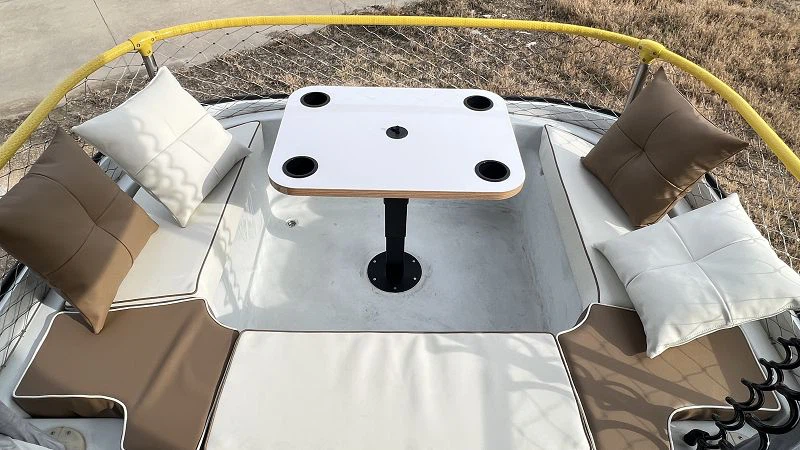

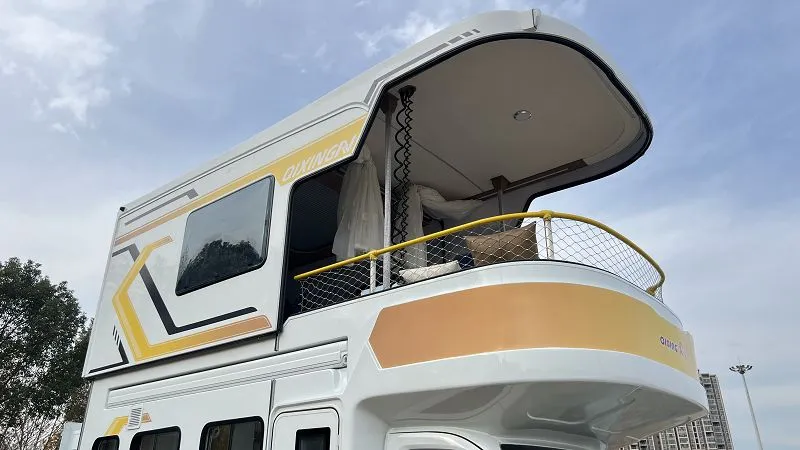

The semi-enclosed viewing terrace is made of waterproof materials throughout. There is a sink for convenient drainage of accumulated water. It is equipped with a circular booth, electrically controlled lifting railings, gauze curtains and shower curtains. It is a perfect space for dining, meetup and enjoy the moon and stars.
Water & Electricity Configuration:120-liters portable water tank, 60-liters hot water tank, 70 liters grey water, 3000 w inverter charge machine, 400ah battery
Optional: 800ah battery, 1600 w solar panel, parking support leg.
General Parameters
|
Chassis Brand |
Ford T8 |
|
Body Material |
Aluminum alloy and other material |
|
Engine |
Diesel Puma2.3L UPG |
|
Size |
5990mm*2435mm*3095mm |
|
Model No |
5051XLJ |
|
Curb Weight |
4750kg |
|
Gross Vehicle Mass |
5250kg |
|
Seat Number |
4-6 seats |
Chassis Detail
|
Engine Code |
DURATORQ4D236H |
|
Engine Displacement |
2.3T |
|
Max Power |
126KW/ 3500 rpm |
|
Peak torque |
430 N.m / 3000rpm |
|
Engine type |
Turbocharger |
|
Emission standard |
VI B |
|
Transmission |
8AT |
|
Max Speed |
156 km/ hour |
|
Fuel Type |
Diesel |
|
Fuel Tank Capacity |
80 Litre |
|
Fuel Consumption per 100 kilometers |
11 Litre |
|
Suspended, Steering and Brake System |
|
|
Front Suspended System /Rear Suspended System |
Hodskins suspension/ Leaf Spring Rigid Axle Suspension |
|
Steering Gear |
Mechanical hydraulic booster |
|
Driving mode |
FR |
|
Braking system |
Front Vented Disc |
|
Brake type |
4-wheel disc brake |
|
Security Configuration |
CDLS & Remote key |
|
Power steering |
|
|
ESC, Electronic -Stability-Controller |
|
|
Brake Assist System |
|
|
Pre tensioning seat-belt |
|
|
Safety Airbag |
|
|
Vehicle Backup Camera |
|
|
Multi-function steering wheel |
|
