RV Description

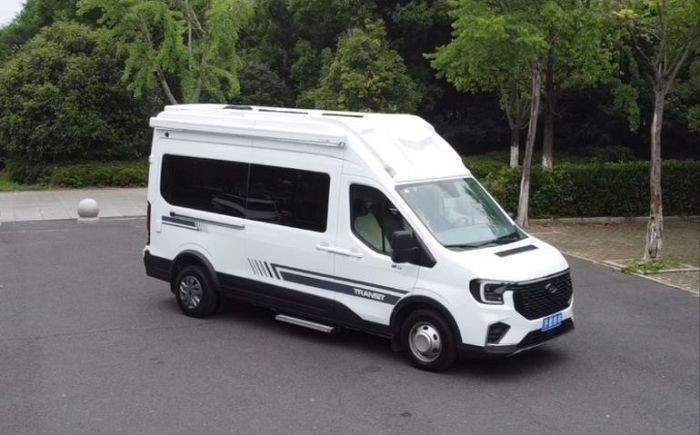

Starlight Business Cabin Camper Van is a deluxe motorhome base on Ford T8 chassis. It is a high-quality B-type RV with spacious space and comfortable drive feeling. Inspired exterior design and reasonable layouts, advance control system with perfect driver experience, professional RV facilities from worldwide, and a special cozy home feeling anywhere. All of these contributed our stunning Starlight Business Cabin Camper Van motorhome for business and travel.
Powerful Drive Force and Advance Control System
Drive force and transmission system, equipped with a 2.3 liters Durator diesel turbocharging engine, with a maximum power of 126kW and a peak torque of 430 Newton meters. It has strong power and energy-saving, the engine has low vibration and low noise. Matched with a ZF 8AT gearbox, it has smooth shifting and convenient operation, bringing a comfortable driving experience to the driver.
Suspension system: The front suspension system is Mcpherson independent suspension; the rear suspension is a Hotchkiss non-independent suspension equipped with coordinated springs and hydraulic shock absorbers, which can provide better driving stability and comfort and reduce the bumpiness of the vehicle during driving.
Safety configuration: It has complete safety configurations, including driver and passenger airbags, electronic handbrake, cruise control, electric exterior rearview mirrors, reversing radar, reversing camera, etc., providing guarantee for users' driving safety.
Varies Layout and Floorplan
As one of the most popular Motorhome, there have varies layout base like vertical bed layout, cross bed layout and rear kitchen layouts.
Outstanding Exterior Design
Overall shape: The exterior lines are smooth and the body proportions are harmonious. The headlight group on the front face adopts a family - style design, similar to the headlights of the new Ford Everest, and has C - shaped LED daytime running lights like the Ford Raptor.
Body size: The overall dimensions of the vehicle are 5998 mm length, 2164 mm width and 2775 mm height. The length of the vehicle is less than 6 meters, so it can be registered with a blue license plate and can be easily driven with a C2 license or above.
Advance Configurations and Reasonable Space Arrangement
Functional areas arrangement from the front to the back are reception area, kitchen area, bathroom and sleeping area. The seats in the reception area are comfortable and can meet the needs of multiple people to sit and rest; the kitchen area is equipped with complete cooking utensils, refrigerators and other equipment, facilitating for cook delicious food; the bathroom is ingeniously designed to improve the user experience as much as possible within the limited space; the beds in the sleeping area are relatively large in size, and each layout has a lifting hammock to choose, which can provide a comfortable sleeping environment.
- Standard equipment with air conditioners, independent diesel heaters, and independent diesel water heaters ensure a living environment that is warm in winter and cool in summer and a 24 - hour uninterrupted hot water supply. Curve screen TVs, audio and other entertainment devices be equipped to enjoy a rich entertainment life during the journey.
Professional Waterway and Electricity System
In terms of specific water and electricity configurations. There has a full food-grade waterway system equipped with four water tanks: clean water tank, hot water tank, sewage tank, and black water tank.
The vehicle-grade wiring harness of the whole vehicle is equipped with, a 400Ah lithium iron phosphate energy storage battery that can be upgraded to 800Ah. A selected 3000-watt inverter charger machine machine and the top-mounted solar panels can be upgraded from 200 watts to 400 watts
General Parameters
|
Models code |
QCX5047XLJC |
|
Chassis Brand |
Ford Transit T8 |
|
Body Material |
Fiber leather, Heater preserves foam |
|
Size |
5998mm*2164mm*2825mm |
|
Curb Weight |
3500kg |
|
Gross Vehicle Mass |
4495Kg |
|
Seat Number |
4-6 |
Chassis Detail
|
Engine Code |
DURATOR4D20B6H |
|
Engine Displacement |
2.3T |
|
Max Power |
128 kw |
|
Peak torque |
430N.m / 3000rpm |
|
Engine type |
Turbocharger |
|
Emission standard |
VI B |
|
Transmission |
8AT |
|
Max Speed |
155 km/ hour |
|
Fuel Type |
Diesel |
|
Fuel Tank Capacity |
80 Liter |
|
Fuel Consumption per 100 kilometers |
10.8 Liter |
|
Suspended, Steering and Brake System |
|
|
Front Suspended System /Rear Suspended System |
McPherson independent suspension/ Air Suspension |
|
Steering Gear |
Mechanical hydraulic booster |
|
Driving mode |
FR |
|
Braking system |
Front Vented Disc |
|
Brake type |
4-wheel disc brake |
|
Security Configuration |
CDLS & Remote key |
|
Power steering |
|
|
ESC, Electronic -Stability-Controller |
|
|
Brake Assist System |
|
|
Seat-belt |
|
|
Safety Airbag |
|
|
Vehicle Backup Camera |
|
|
Multi-function steering wheel |
RV configurations
|
Sitting and lying system |
Passenger car grade double adjustable seat |
||||
|
Main and passenger seats covered |
|||||
|
Passenger swivel seat (optional) |
|||||
|
Movable dining table or swivel sub-table |
|||||
|
Middle door anti-mosquito screen door |
|||||
|
Furniture interior |
Cab privacy curtain |
||||
|
Integrated cabinet |
|||||
|
Body exterior |
E0 grade environment friendly standard RV furniture panels |
||||
|
Electric heated mirrors |
|||||
|
Roof mounted solar power system with flexible solar panel |
|
Environment friendly RV special floor leather |
|||
|
Qixing customized manual awning |
Yacht wood floor (optional) |
||||
|
Car body stickers |
Automatic middle door (optional) |
||||
|
Outdoor light |
Light weight and environment friendly GMT vehicle interior |
||||
|
Cockpit original driving high-power heating and cooling air conditioner |
Kitchen system |
RV refrigerator |
|||
|
Air conditioning and ventilation system |
12V variable frequency back KME air conditioner |
Countertop |
|||
|
Independent fuel heater |
Built-in induction cooker |
||||
|
Middle door sliding glass window |
Covered sink for RV |
||||
|
Sturdy roof made by glass fiber reinforced plastics and aluminum alloy |
Audio and video entertainment system |
Internet entertainment multimedia navigation all-in-one machine |
|||
|
Waterway system |
Food grade waterway |
||||
|
15M food grade external water filling pipe |
|||||
|
Gravity water inlet |
|||||
|
Electrical system |
Vehicle circuit protection system |
|
110L portable water tank |
||
|
Living area 600AH lithium battery pack |
40L gray water tank |
||||
|
Indoor/outdoor AC220V output socket |
External shower system |
||||
|
Indoor 12V car USB power interface |
Manual drain valve |
||||
|
Indoor 12V car USB power interface Multi-system hierarchical control of lighting fixtures in the car |
Bathroom system |
Pull-out box toilet/ portable toilet |
|||
|
|
|||||
|
Multi-system hierarchical control of lighting fixtures in the car RV external power port (AC220V) |
Semi-open bathroom or open bathroom |
||||
|
|
|||||
|
15M external power cord |
Fold-able basin |
||||
|
Charging and inverting all-in-one machine 3000W |
Foldable towel rack |
||||
|
Color |
White/black |
||||
