RV Description

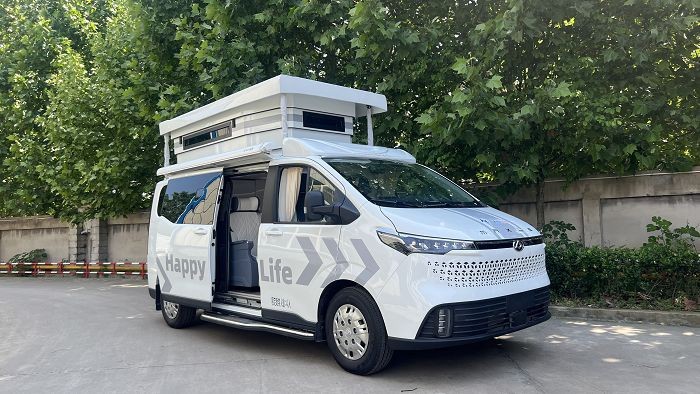

Starlight Fashion Pop-top Roof Camper Van with MAXUS Chass is uique and creative design, exquisite workmanship, perfect functions, good trafficability, rich usage scenarios, and reasonable price, it has won the market's welcome. It is a multifunctional Pop-top Camper Van integrating commuting, business travel, and camping.
Starlight Fashion MAXUS Chassis Pop-to Camper Van is divided into two models, long wheelbase and short wheelbase. The short wheelbase model has a classic four-seat layout. The long wheelbase model has three business travel floorplans, five camping floorplan, four rear kitchen and bathroom floorplan, and customization floorplan also possible.
Highlights of unique four-layer Pop-top roof from Starlight Fashion MAXUS Chassis Pop-to Camper Van
- Spacious interior space, the hard-top Pop-top structure can quickly expand the vertical space up we arrived our campsite, providing sufficient standing and sleeping space. The interior space can change according to needs.
- Low center of gravity and low wind resistance: Compared with a fixed high roof, the hard-top Pop-top Camper Van has lower wind resistance in driving state and reduces the vehicle's center of gravity, thereby improving driving stability. This is especially important when driving in complex road conditions or off-road environments.
- Enhances trafficability: After the hard-top Pop-top Camper Van lowers the top, the overall height is reduced, enabling it to easily pass through height restriction bars and enter underground garages, increasing the practicality and convenience of the Camper Van.
- Improves sound insulation and heat preserve performance: benefit to whole vehicle polyurethane foaming process, it effectively isolates the transmission of external noise, keeps the interior quiet and comfortable. Meanwhile, also improve heat preserve which reduce energy consumption.
- Beautiful appearance, after the Pop-top roof is fully opened, it is very beautiful and blends seamlessly with the entire chassis. It not only follows the crown structure of Oriental aesthetics but also resembles an inverted pagoda.
In terms of exterior colors, Starlight Fashion MAXUS Chassis Pop-to Camper Van has white, black, gray, and silver as the main colors. The most classic decals of Starlight Fashion MAXUS Chassis Pop-to Camper Van are the mountain style Ins decals and the simple happy life decals.
Exterior dimensions, the driving dimensions of the short wheelbase version are 4998/5230*2080*2170 mm; the driving dimensions of the medium wheelbase version are 5337/5537*2080*2170 mm. Both the medium wheelbase and short wheelbase versions have good trafficability and driving comfort.
Powerful driving force and economy oil wear. This motorhome equipped with an advanced 2.0T diesel engine. The maximum horsepower can reach 150 horsepower, and the peak torque is as high as 375 N·m, providing strong power output for the vehicle.Whether in the starting stage or high-speed driving, it can quickly respond to the driver's instructions, showing a rapid acceleration ability and easily coping with various road conditions. Even in cases such as full load or climbing, its power will not be weakened at all and always maintains a stable and strong output.
In terms of fuel economy, Starlight Fashion MAXUS Chassis Pop-to Camper Van also has excellent performance. Although it has powerful driving force, the comprehensive fuel consumption is less than 9 liters.
- Technological configuration: Equipped with a 12.3-inch high-definition touch screen, combined with an intelligent vehicle networking system, bringing a smooth and silky vehicle-machine intelligent interconnection experience.
- Seat function: While ensuring comfort, the driver's seat supports multi-directional adjustment and the backrests of the driver and co-driver in accordance with human physiology.
- Intelligent driving assistance: optional L2+ level intelligent driving assistance system and EPS electronic power steering system. The whole series is standardly equipped with EPB + HHC, which can effectively reduce driving pressure. In addition, keyless entry and one-button start also make vehicle use more convenient.
These configurations and designs of the I body intelligent cockpit greatly enhance the comfort and convenience of driving. Whether for business trips or daily use, it can provide high-quality experiences for drivers and passengers.
Advanced Configurations. The KME special frequency conversion air conditioner for RVs with an imported compressor from Italy, the ICECO special refrigerator for RVs from Europe, the icrowave oven from Winnia in South Korea, etc. This motorhome can be said to achieve global wisdom and made in China. In terms of specific water and electricity configurations. A full food-grade waterway system is equipped with four water tanks: clean water tank, hot water tank, sewage tank, and black water tank. The vehicle-grade wiring harness of the whole vehicle is equipped with a 400Ah lithium iron phosphate energy storage battery that can be upgraded to 600Ah. A selected 3000-watt inverter charger machine and the top-mounted solar panels can be upgraded from 200 watts to 400 watts.
General Parameters
|
Models code |
QXC5045XLJC |
|
Chassis Brand |
MAXUS |
|
Body Material |
Aluminum alloy, Fiber leather, Heater preserves foam |
|
Engine Brand |
Shanghai Motor |
|
Dimensions |
5364/5575 mm*2030/2080 mm*2170mm |
|
Curb Weight |
3142 kg |
|
Gross Vehicle Mass |
3550kg |
|
Seat Number |
4-6 seats |
Chassis Detail
|
Engine Code |
NJ6546FDC5C-DT |
|
Engine Displacement |
2.0T |
|
Max Power |
110 kw/ 5500 rpm |
|
Peak torque |
375N.m / 3000rpm |
|
Engine type |
Turbocharger |
|
Emission standard |
VI B |
|
Transmission |
9AT |
|
Max Speed |
156 km/ hour |
|
Fuel Type |
Diesel |
|
Fuel Tank Capacity |
80 Liter |
|
Fuel Consumption per 100 kilometers |
8.8 Liter |
|
Suspended, Steering and Brake System |
|
|
Front Suspended System /Rear Suspended System |
McPherson independent suspension/ Air Suspension |
|
Steering Gear |
Mechanical hydraulic booster |
|
Driving mode |
FF |
|
Braking system |
Front Vented Disc |
|
Brake type |
4-wheel disc brake |
|
Security Configuration |
CDLS & Remote key |
|
Power steering |
|
|
ESC, Electronic -Stability-Controller |
|
|
Brake Assist System |
|
|
Seat-belt |
|
|
Safety Airbag |
|
|
Vehicle Backup Camera |
|
|
Multi-function steering wheel |
RV configurations
|
Sitting and lying system |
Passenger car grade double adjustable seat |
||
|
Main and passenger seats covered |
|||
|
Passenger swivel seat (optional) |
|||
|
Double-top bed (1950*1150) |
|||
|
Movable dining table or swivel sub-table |
|||
|
Furniture interior |
Middle door anti-mosquito screen door |
||
|
Cab privacy curtain |
|||
|
Body exterior |
Integrated cabinet |
||
|
E0 grade environment friendly standard RV furniture panels |
|||
|
Electric heated mirrors |
|
Environment friendly RV special floor leather |
|
|
Roof mounted solar power system with flexible solar panel |
|
Yacht wood floor (optional) |
|
|
Qixing customized manual awning |
Automatic middle door (optional) |
||
|
Car body stickers |
Light weight and environment friendly GMT vehicle interior |
||
|
Outdoor light |
Kitchen system |
RV refrigerator |
|
|
Air conditioning and ventilation system |
Cockpit original driving high-power heating and cooling air conditioner |
Countertop |
|
|
12V variable frequency back KME air conditioner |
Built-in induction cooker |
||
|
Independent fuel heater |
Covered sink for RV |
||
|
Middle door sliding glass window |
Audio and video entertainment system |
Internet entertainment multimedia navigation all-in-one machine |
|
|
Lifting mechanism |
Sturdy roof made by glass fiber reinforced plastics and aluminum alloy |
Waterway system |
Food grade waterway |
|
4 layers aluminum alloy roof |
15M food grade external water filling pipe |
||
|
Spiral lift rod electric lifting platform |
Gravity water inlet |
||
|
Electrical system |
Control Panel |
110L portable water tank |
|
|
Vehicle circuit protection system |
40L gray water tank |
||
|
Living area 600AH lithium battery pack |
External shower system |
||
|
Indoor/outdoor AC220V output socket |
Manual drain valve |
||
|
Indoor 12V car USB power interface |
Bathroom system |
Pull-out box toilet |
|
|
or portable toilet |
|||
|
Multi-system hierarchical control of lighting fixtures in the car |
Semi-open bathroom or open bathroom |
||
|
|
|||
|
RV external power port (AC220V) |
Fold-able basin |
||
|
15M external power cord |
Foldable towel rack |
||
|
Charging and inverting all-in-one machine 3000W |
Appearance color |
Black / white/ blue |
|
