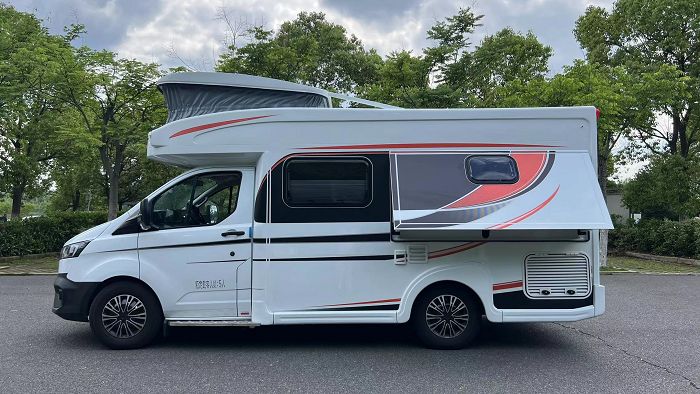

Star Milkway Mini Pop-top Motorhome

Star Milkway Mini Pop-top Motorhome
Product Introduction:
Brand Name: Qixing RV Series: Star Milkway Type: Pop-top motorhome GVW: 3510 Kg Passenger Numbers: 4 -5
Dimensions:(length x width x height) (mm):5890*2230*2523
Star Milk Way Mini | the Miniest Semi-integrated Motorhome
Star Milk Way Mini suppose the miniest Semi-integrated motorhome, the driving dimension is 5890*2215*2530 mm, but have a spacious living area like other models of Star Milk Way series motorhome, especial the 2200 mm* 1400 mm vertical bed is awosome.
Send Inquiry
Description
Technical Parameters
RV Description

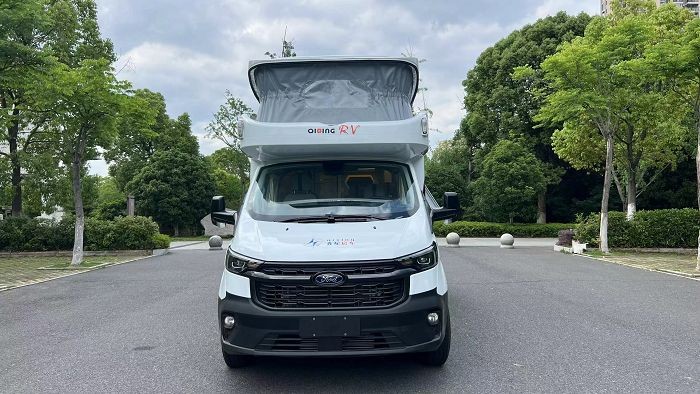

1 detail of Star Milkway Mini Pop-top Roof Motorhome003



Star Milk Way Mini suppose the miniest Semi-integrated motorhome, the driving dimension is 5890*2215*2530 mm, but have a spacious living area like other models of Star Milk Way series motorhome. Benefit to the spacious living area, Star Milk Way Mini have an individual master bedroom and a unique overcab bed on a Semi-integrated motorhome. As an excellent Pop-top semi-integrated motorhome, Star Milk Way Mini is a caravan with an aluminum alloy cage-like King Kong skeleton, which has spacious space and strong trafficability.

This motorhome selects the classic Transit T6 RV-specific chassis from automotive kingdom Ford. As the update version, it is equipped with an energy-saving and environmentally friendly turbocharged diesel engine, matched with a 9AT automatic manual transmission system, and equipped with dual generators for driving, with strong power, smooth gear shifting.



The rare aluminum alloy stamping exterior wall, one-time formed body, and polyurethane foam insulation layer. The body is stable and firm, the appearance is bright and smooth. Eliminated abnormal noises and water leakage in the body, and greatly improved the insulation and heat insulation performance

In terms of external appearance, the simplicity white body, combined with the dynamic and flexible two-color decals, is simple and fashionable, activity and beautiful. The unique fan-shaped side slide-out have outstanding appearance and follow the traditional Chinese aesthetics.

Safety configuration: ABS, EBD, ESC, vehicle stability system, BA brake assist system, central locking in the cab, warning seat belts, reversing image, reversing radar, tire pressure monitoring, dual airbags, etc. are all available.

2 1 detail of Star Milkway Mini Pop-top Roof Motorhome003

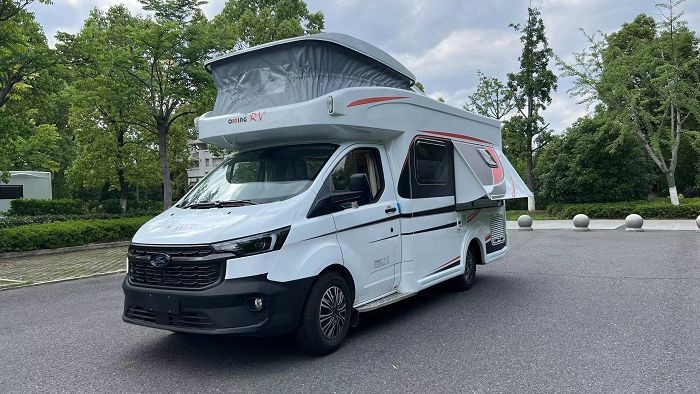

3 1 detail of Star Milkway Mini Pop-top Roof Motorhome002



Safety configuration: ABS, EBD, ESC, vehicle stability system, BA brake assist system, central locking in the cab, warning seat belts, reversing image, reversing radar, tire pressure monitoring, dual airbags, etc. are all available. Safety configuration: ABS, EBD, ESC, vehicle stability system, BA brake assist system, central locking in the cab, warning seat belts, reversing image, reversing radar, tire pressure monitoring, dual airbags, etc. are all available.

Perfect Layout& Spacious living area. The reasonable four-to-five-seat layout is applicable, and the space utilization rate inside the RV is maximized, making the space spacious and fully equipped. From front to back, they are the driving area, the front-to-back through aisle, the bright kitchen area for living, the master bedroom and bathroom area.

The cab part includes the driver and co-driver seats, the front-to-back through aisle, and there is also a 2000*1400mm*1100mm overcab bed on the top.



The overcab bed is equipped with a privacy curtain, a roof skylight, and a sightseeing window, which is an independent sightseeing bedroom during the trip

The open kitchen & living area is regularly equipped a folding TV, a detachable small table, a vehicle-mounted induction cooker, a covered sink, a special refrigerator for RVs, an optional winna microwave oven, two adjustable van sofa seats, an aviation seat with massage leg support, ventilation and heating functions. It can fully meet our needs for business travel and hospitality, mobile office, living and dining, and indoor cooking.

The fan-shaped side expansion that follows the traditional Chinese aesthetics and increases the space of the rear longitudinal bed inside the RV, making the size of the rear longitudinal bed of this vehicle reach 2.1 meters by 1.4 meters, which is rare in C-type RVs. The beautiful external fan-shaped side expansion is also a continuation of traditional Chinese aesthetics. As the independent master bedroom of this vehicle, the large longitudinal bed also includes a privacy curtain, a roof skylight and a landscape push-out window.

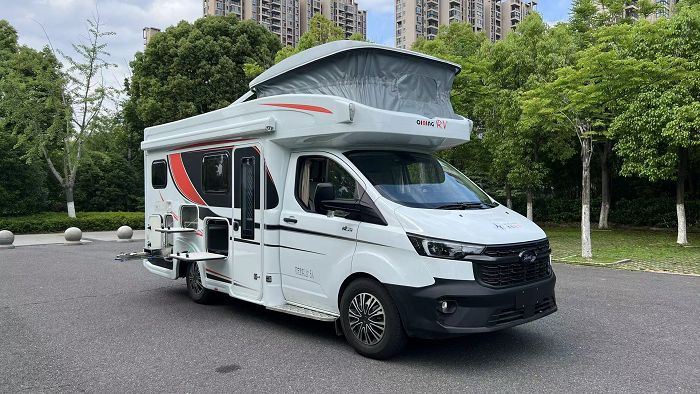

4 detail of Star Milkway Mini Pop-top Roof Motorhome001001
5 detail of Star Milkway Mini Pop-top Roof Motorhome002



The large-sized special storage compartment for RVs under the bed is not only spacious, but also can be connected inside and outside, and is kindly equipped with cabin lights and outdoor shower.

The mini and convenient bathroom adopts a waterproof, mold-proof and moisture-proof plastic suction molding process, and is equipped with a ventilation fan, a shower, soap and cosmetic shelf, a sink, a vanity mirror, rotating toilet, a bath stool and an anti-corrosion wood floor drain. It can be said that although it is small, it has all the necessary functions and is fully capable of meeting the needs of showering and using the toilet during the trip.

In terms of heating and cooling facilities, it is standardly equipped with an independent diesel heater, a Daikin air conditioner with the world-leading cooling technology, and an independent diesel liquid water heat system. It ensures a spring-like living environment with our motorhome and a 24-hour uninterrupted hot water supply.



Water system: This motorhome selects food-grade safe and environmentally friendly water circuit and equipped with an independently molded 90-liter clean water tank, a 45-liter waste water tank, a 20-liter stainless steel hot water tank and a black water tank built in the toilet.

Electricity system: The vehicle is equipped with full-vehicle gauge-level wiring harness, the standard 400Ah lithium battery can be upgraded to 800Ah, the top-mounted 200W solar panel can be added to 500W, and the selected 3kW inverter charger integrated machine and dual generators for driving ensure the safety of the circuit and electricity supply.

External facilities of the RV: It is equipped with a 3.5-meter outdoor awning, an American double-layer passenger door, an outdoor folding storage board, a high-altitude version of the fierce fire and wind-proof diesel stove, an RV water filling port, and a mains power access port. An outdoor TV can be optionally installed.

6 detail of Star Milkway Mini Pop-top Roof Motorhome002



General Parameters



Motorhome Code

QXC5048XLJC

Engine

Model

DURATORQ4D20B6H

Form

In-line, four-cylinder, supercharged and intercooled, high-pressure common rail

Displacement

1.998L

Maximum power (KW / rpm)

105/5500

Maximum torque (NM/rpm)

350/3000

Oil standards

0# diesel

Fuel tank volume (L)

80

Overall dimensions (length x width x height) (mm)

5890*2230*2535

Wheelbase(mm)

3300

Curb weight (Kg)

3102

Total mass (Kg)

3510

Gearbox system

9-speed automatic transmission

Maximum safe speed (Km/h)

156

Tire

215/75R16LT

Rated number of passengers

4-5 people

Suspension form

Front suspension MacPherson independent suspension, rear suspension leaf spring non-independent suspension

Steering

Hydraulic power steering

Drive form

Front wheel drive

Dual generator

Dual 12V+12V: Dual 150A-2KW



Security Configuration

CDLS & Remote key

Power steering

ESC, Electronic -Stability-Controller

Brake Assist System

Seat-belt

Safety Airbag

Vehicle Backup Camera

Multi-function steering wheel



RV configurations







Regular Motorhome Configuration

Diesel stove

Lavatory toilet

Ventilator

Shower

2 horns stereophony system

32inch TV

400Ah lithium battery

3000W inverter

1p DAIKIN Air-condition

220V/12V/USB plug base

220V inlet power socket and 15-meter cable220V

Control center (electricity monitor)

Water fill system +RV water pumper

180L portable water tank (with led monitor)

60L gray water tank + manual valve

Diesel heater +Diesel hot water system

15m water tube

2.1 meter*1.7meter cross bed

152 liters RV refrigerator

Rear slide-out

Left slide-out

Over cab Pop-top

2.2 meters* 1.4 meters vertical bed

1.9 meters* 1.4 meters overcab bed

Mini wash machine



Optional Motorhome

Configuration

Optional

Park leg

Rear hook+13-line electric socket

Rear ladder

Bicycle frame

Sockets for 360 monitors

yacht wood floor

Mini wash machine

800AH lithium battery

500W solar panel
