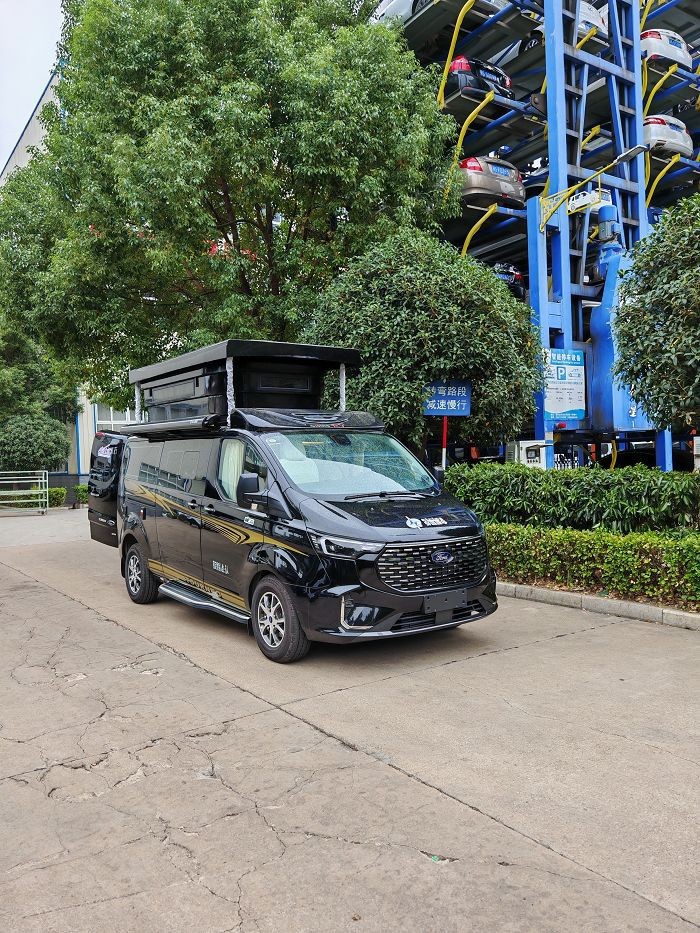

Starlight Fashion Ford Chassis Pop-top Camper Van

Chassis Model: Ford new Transit Bottom Bracket Center Top

Engine

Model:

Form: In-line, four-cylinder, supercharged intercooling direct injection in the cylinder Displacement :1.997L

Maximum power (KW) :105

Maximum torque (NM/rpm):350/3500

Overall dimensions (length x width x height) (mm):5530*2050*2170

Wheelbase(mm): 3300

Curb weight (Kg): 2992

Total mass (Kg): 3300

Gearbox system: 9-speed automatic transmission Maximum safe speed (Km/h):170

Tire :215/65R16C

Rated number of passengers: 4-6 people

Suspension form: Front suspension MacPherson independent suspension, rear suspension leaf spring non- independent suspension

Steering: Hydraulic power steering

Drive form: Front wheel drive Generator: 12V,150A-2KW

Security configuration

Tire pressure monitoring system electronic handbrake

Cruise control Automatic wiper Fire extinguisher

Anti-theft alarm system Automatic parking

Sitting and lying system

Passenger car grade double adjustable seat Main and passenger seats covered Passenger swivel seat

(optional)

Double-top bed (1850*1150) First floor bed (1850*750)

Movable dining table or swivel sub-table



Body exterior

Front and rear LED headlights, Daytime running lights, Electric heated mirrors

Roof mounted solar power system with flexible solar panel, Qixing customized manual awning

Furniture interior

Middle door anti-mosquito screen door Cab privacy curtain



Integrated cabinet

E0 grade environment friendly standard RV furniture panels Environment friendly RV special floor leather

Yacht wood floor (optional)

Lightweight and environment friendly GMT vehicle interior

Air Conditioning and ventilation system

Cockpit original driving high-power heating and cooling air conditioner 12V variable frequency back KME air conditioner

Independent fuel heater

Middle door sliding glass window

Kitchen system RV refrigerator Countertop

Built-in induction cooker Covered sink for RV

Lifting mechanism

Sturdy roof made by glass fiber reinforced plastics and aluminum Lifting alloy

Spiral lift rod electric lifting platform



Waterway system Food grade waterway

15M food grade external water filling pipe Gravity water inlet

110L portable water tank 40L gray water tank External shower system Manual drain valve

Electrical system Control Panel

Vehicle circuit protection system Living area 600AH lithium battery pack Indoor/outdoor

AC220V output socket Indoor 12V car USB power interface

Multi-system hierarchical control of lighting fixtures in the car RV external power port (AC220V)

15M external power cord Charging and inverting all-in- one machine 3000w

Bathroom system

Pull-out box toilet or portable toilet

Close bathroom semi-open bathroom or open bathroom
